How to: Import Hosting Accounts to InterWorx ¶

InterWorx includes a built-in import tool to facilitate easy migration between servers. Accounts can be imported from a single backup, or en mass by remotely connecting to the Remote/Source server. This can be performed from both NodeWorx, and from the CLI.

Note

Supported control panels are InterWorx, cPanel, and Plesk.

Contents

How to: Import Hosting Accounts to InterWorx

Importing Multiple Accounts ¶

To Import Multiple Accounts From a Remote Server Using NodeWorx ¶

Log into NodeWorx from the browser (https://ip.ad.dr.ess:2443/nodeworx)

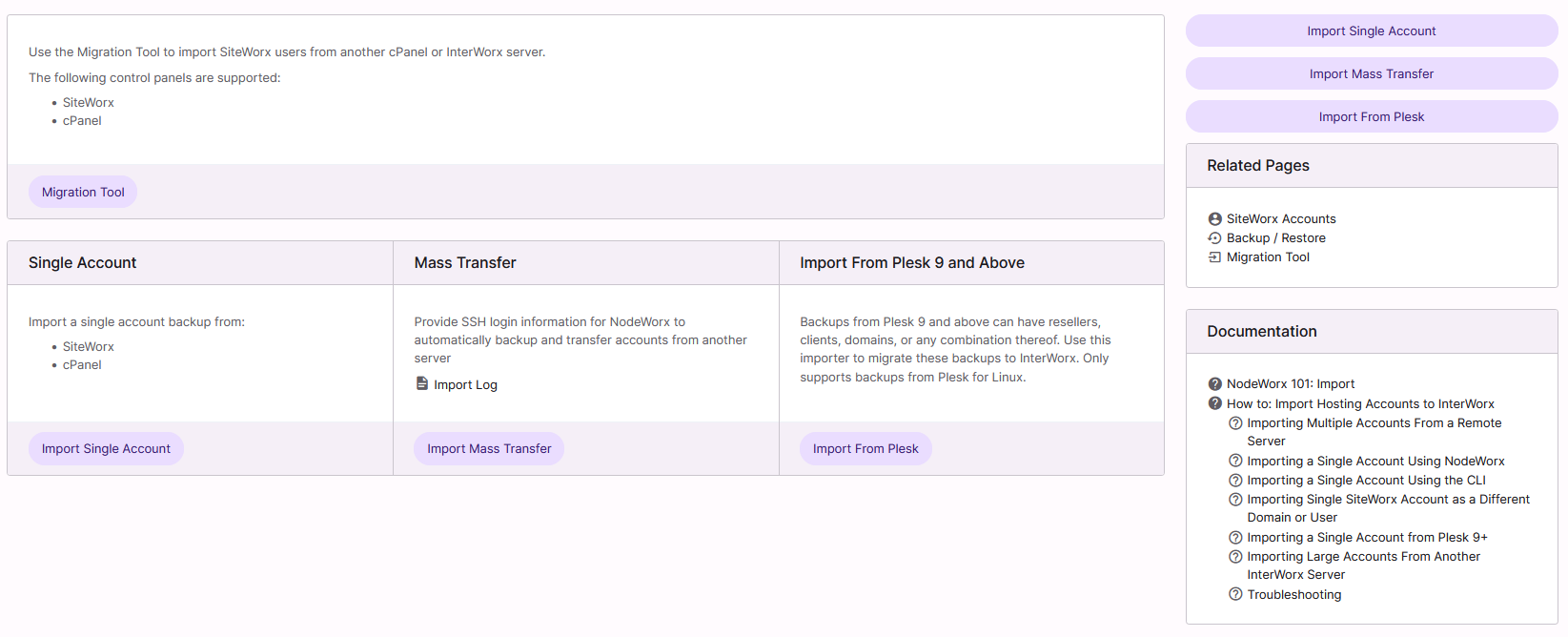

In NodeWorx, navigate to SiteWorx > Import
Click Import Mass Transfer
In the Hostname field, enter the IP or hostname of the Remote/Source server

Note

The mass transfer is initiated via SSH, so if the Remote/Source server is running SSH on a non-standard port, that port can be designated by using <hostname>:<port number>

For example, if the Remote/Source server, ‘source.hostname.com’, has SSH on port 2200, it would be entered as source.hostname.com:2200 in the Hostname field.
In the Root User field, enter the root user of the Remote/Source server
In the Password field, enter the password for the root user of the Remote/Source server
Click Query Accounts. This opens the Mass Import page
- There are several information fields and optional dropdown menus for each account
  - Storage: The approximate amount of disk space the account is using on the Remote/Source server

    This field will only show accurate information is quotas are enabled on the Remote/Source server. Otherwise it will show 0.00 MB
  - Reseller: The reseller the account will be imported under

    If the remote reseller does not already exist on the destination server, there will be the option to import the remote reseller

    If the reseller in the backup file already exists, the account will automatically be imported under that reseller
  - Database Server: The database server the imported account will use
  - IPv6 Pool: The IPv6 pool the imported account will use
  - IPv4 Address: The IPv4 address the imported account will be assigned to
  - IPv6 Address: The IPv6 address the imported account will be assigned to
  - Type: Allows the choice between either a “Full” or “Structure-Only” import

    Structure-only imports are much smaller and faster than full imports, but only import SiteWorx account related information (such as quotas, usernames, passwords) and not actual data (such as website data files, database data, and email files)

    Structure-only imports are especially useful when mass-transferring large accounts, since large accounts can take a considerable amount of time to mass-transfer
  - SSL: States whether the account has an SSL certificate on the remote server

    Let’s Encrypt certificates are not included in the backup or import of SiteWorx accounts due to DNS requirements
- At the top of each section is a row of Advanced Options dropdowns. Options selected from this menu bar will be applied to all of the accounts on the list
Select the accounts to be migrated by clicking the checkbox next to each account
Click Import. This refreshes the page to show the status of each of the chosen accounts’ import process:
- In Progress: Account is currently being backed up non the Remote/Source server, transferred to the Local/Destination server, and imported into the InterWorx Control Panel
- Pending: Account is waiting for the import process to begin
- Success: Import of account succeeded
- Failure: Import of account failed. A message that indicates possible reasons for failure will appear beneath the message

The page will automatically reload to update the import status of each account.

When the mass transfer process is complete, all accounts will either have a Success or Failure status in the Import Status column.

Note

If navigating away from the page, the mass transfer will still continue in the background. However, when returning to the page, the account status information will no longer be shown.

Troubleshooting ¶

“Permission Denied” error after clicking Query Accounts:
-Check to make sure the following:
The root password is correct

The root username is correct

SSH is enabled for the root user on the Remote/Source server
Imports fail with an “Invalid Password” error
- The most common cause of this error is that passwordless/keyless SSH is set up between the two servers
  Disable passwordless/keyless SSH and try the import, again

Importing a Single Account ¶

To Import a Single Account Using NodeWorx ¶

Log into NodeWorx from the browser (https://ip.ad.dr.ess:2443/nodeworx)
In NodeWorx, navigate to SiteWorx > Import
Click Import Single Account

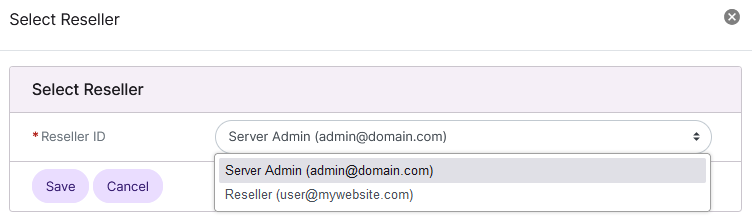

Select the reseller the account will be imported under from the Reseller ID dropdown
In the Local Backup File field, there are two options:
- Click Browse to choose a backup file on the local machine hard drive
- Click the Folder Icon to specify the path to a backup file located on the destination/local server
From the Control Panel Type dropdown, select the control panel that created the backup
From the IP Address dropdown, select the new IP address for the account
- If the backup is from another InterWorx server, the IP address can also be assigned manually by clicking the checkbox next to Assign IPs Manually
From the Database Server dropdwn, select the database server the imported account will use
Click Next. This opens the confirmation form

# Click Import

To Import a Single Account Using the CLI ¶

The CLI method of importing accounts to an InterWorx server is less user-friendly than doing so through NodeWorx,but it offers more options and flexibility.

Log in to the server at the CLI as root, either via SSH or from the terminal

Run the InterWorx import script. It has three required parameters:

~iworx/bin/import.pex --archive {/path/to/backup} --ip-address {ip.for.bac.kup} --control-panel {control-panel}

Parameter

Description

--archive=file

Path and filename of backup file to import.

--ip-address=ip-address

IP address to use for the imported account. The IP address must be a valid shared or unused dedicated IP address. inifile is also a valid input for this parameter when importing a SiteWorx account (uses old IP found inside backup)

--control-panel=cptype

Indicates the control panel from which this backup was created. Valid values:

siteworx
cpanel
plesk

For example, to import a backup located at /tmp/backup.tar.gz, that was created from another InterWorx server, and will be assigned to the IP 10.1.10.99, run:

[iworx@server ~]$ ~iworx/bin/import.pex --archive=/tmp/backup.tar.gz --control-panel=siteworx --ip-address=10.1.10.99

There are also optional flags that may be used when importing the account. Some common examples:

Parameter	Description
`--force`	Tells import.pex to force the restore which will delete any existing SiteWorx account, without a confirmation prompt, before restore proceeds. This is necessary when trying to revert to an older state of a SiteWorx account from a backup.
`--reseller-id=id number`	Tells import.pex to assign the account to a particular reseller account. If this parameter isn’t used the account will be assigned to the NodeWorx administrator.
`--create-reseller`	Tells import.pex to create the reseller that’s stored in the backup file. If the reseller in the backup file already exists, the account will automatically be imported under this reseller.

A full list of options and flags can be seen by adding the -h or --help flag to the command:

[root@server ~]# ~iworx/bin/import.pex -h
--archive is required
--control-panel is required
Usage: import.php [ options ]
--archive <string>                Path and filename of the backup file to import
--control-panel <string>          Indicates the control panel from which this backup was created.
Available Options: cpanel, directadmin, ensim, plesk, siteworx
--ipv4 <string>                   IPv4 Address to use for the domain being imported.
--ipv6 <string>                   IPv6 Address to use for the domain being imported.
--ipv6_pool <string>              IPv6 Pool to use.
--old-ipv4 <string>               Original IPv4 Address for the domain being imported.
--old-ipv6 <string>               Original IPv6 Address for the domain being imported.
--ip-map <string>                 Some backup types support an explicit map of IPs
--ip-map-md5 <string>             File containing MD5 Checksum of ip-map file
--db-server <string>              The nickname of the database server to be used for importing the account
--create-reseller                 Create the reseller that’s stored in the backup file.
--reseller-id <integer>           If this parameter isn't used the account will be assigned to the NodeWorx administrator.
--ip-type <string>
--force                           Will delete any existing SiteWorx account, without a confirmation prompt, before restore proceeds.
--no-restart                      Prevent the web server from restarting after import.
--quiet                           No output from import
--master-domain <string>
--import-domain <string>
--siteworx
--nofull
--preserve-siteworx-account       Import over the existing SiteWorx account.
--override-master-domain <string> Create the backup using a different master domain name
--override-unix-user <string>     Create the backup using a different unix username
--move-defaults                   Move and chown/chmod defaults file for an import
--defaults-source <string>        Source file
--defaults-dest <string>          Destination file
--defaults-group <string>         Group
--help                            Print this help message
--verbose                         Provide verbose output if possible
--no-color                        Suppress colorized output
--force-color                     Forces colorized output.  Overrides --no-color
[root@server ~]#

To Import a Single SiteWorx Account as a Different Domain or User ¶

SiteWorx backups can be imported as a different master domain or unix user than what is listed in the backup.

This is useful if importing to a Destination/Local server where a domain or user with the same name already exists.

Note

This options only applies to backups that do not contain secondary domains

Log in to the server at the CLI as root, either via SSH or from the terminal

To override the master domain, run the import script with the --override-master-domain flag and what the new domain should be

~iworx/bin/import.pex --archive {/path/to/backup} --ip-address {ip.for.bac.kup} --control-panel {control-panel} --override-master-domain {new-domain}

To override the unixuser, run the import script with the --override-unix-user flag and what the new unix user should be
~iworx/bin/import.pex --archive {/path/to/backup} --ip-address {ip.for.bac.kup} --control-panel {control-panel} --override-unix-user {new-unix-user}

To Import a Single Account from Plesk 9+¶

Note

Due to file structure differences, there is a separate single account importer in NodeWorx for accounts imported from Plesk.

Log into NodeWorx from the browser (https://ip.ad.dr.ess:2443/nodeworx)
In NodeWorx, navigate to SiteWorx > Import
Click Import from Plesk
In the File field, there are two options:
- Click Browse to choose a backup file on the local machine hard drive
- Click the Folder Icon to specify the path to a backup file located on the destination/local server
Click Continue
Select the reseller the account will be ported under from the Reseller ID dropdown
Update the Client Email field with an email address that is associated with the account
From the IP Address dropdown, select the IP address the account should be assigned to
From the Database Server dropdwn, select the database server the imported account will use
Click Continue. This opens the confirmation form
Click Import

Importing Large Accounts From Another InterWorx Server ¶

When using the Mass Transfer tool, or Single Account Import tool to import a large SiteWorx account from another InterWorx server, it is common for the process to time out or fail before the import is complete. As such, it is recommended to import large accounts incrementally, instead.

On the Source server, create a Structure-Only backup of the SiteWorx account, either from the SiteWorx interface or via the CLI
Transfer the Structure-Only backup from the Source server to the Destination server, using a service such as SCP, Rsync, FTP, etc.
Using either the Single Account Import tool in NodeWorx , or the CLI, import the Structure Only backup. This will create the basic structure of the SiteWorx account, including email addresses, FTP accounts, database names and database users. It will not include data such as web files, email messages, or database tables and contents
On the Source server, create a Partial backup of the SiteWorx account either from the SiteWorx interface or via the CLI. This backup should contain the smaller data items for the account. For example, if the bulk of the account consists of email messages, the partial backup should specify only the web files and databases
Transfer the Partial backup from the Source server to the Destination server, using a service such as SCP, Rsync, FTP, etc.
Using either the Single Account Import tool in NodeWorx, or the CLI, import the Partial backup. This will import the data items that were specified
Manually transfer the remaining data items from the Source server to the Destination server using a service such as Rsync or FTP. The file locations and permissions should match the locations and permissions on the Source server
