Firewall Guide

The InterWorx Control Panel integrates with the APF iptables firewall system.

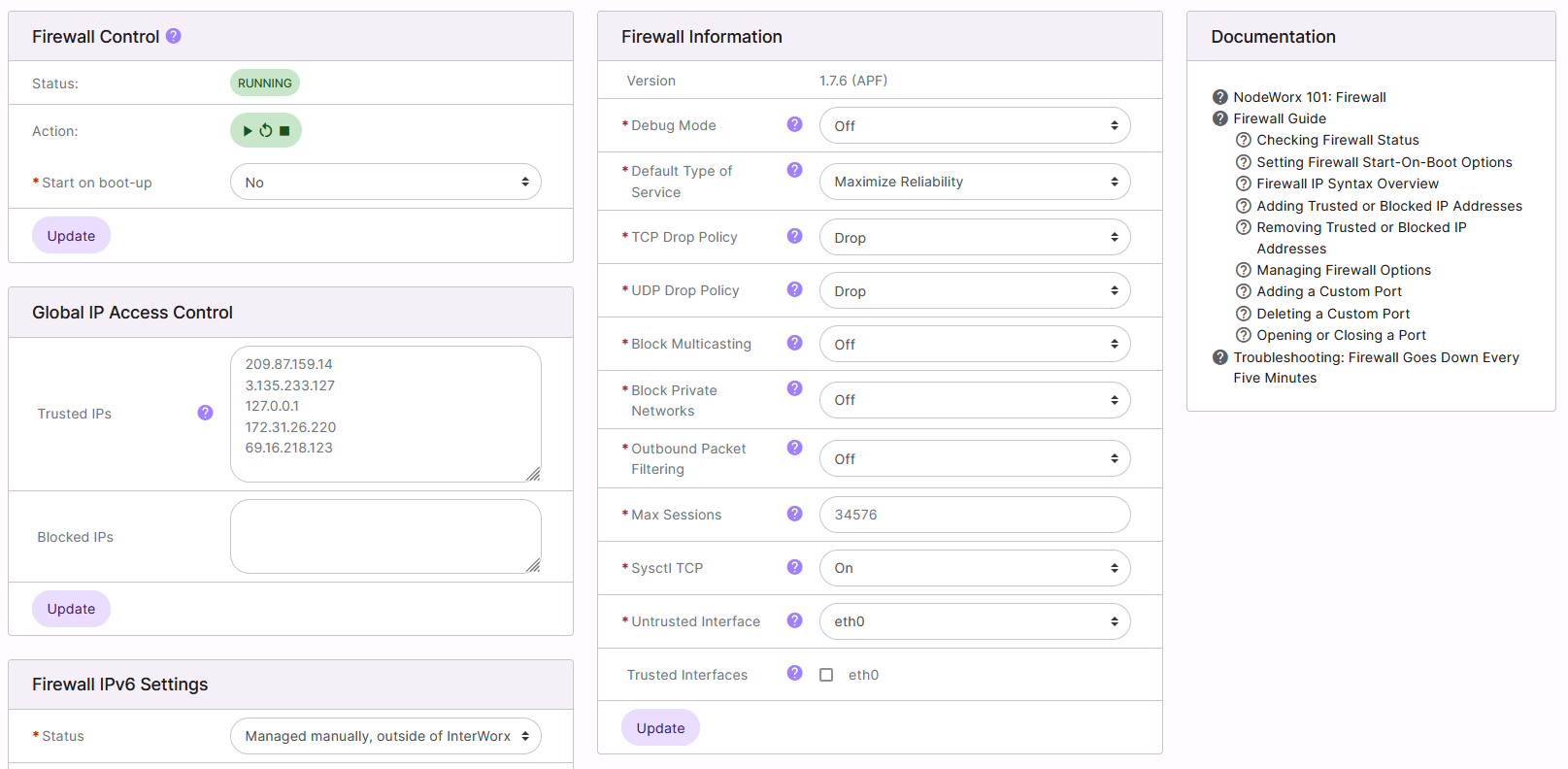

From the Firewall page in NodeWorx, server administrator have fine grained control over the firewall configuation on the server, including individual port control, and global IP access and deny lists.

Contents

• Firewall Guide

  • To Manage the Firewall

    • Checking Firewall Status

    • Setting Firewall Start-On-Boot Options

  • To Manage Trusted and Blocked IPs

    • Firewall IP Syntax Overview

      • Simple Syntax

      • Advanced Syntax

    • Adding Trusted or Blocked IP Addresses

    • Removing Trusted or Blocked IP Addresses

  • To Manage Firewall Options

  • To Manage Custom Port Access Rules

    • Adding a Custom Port

    • Opening or Closing a Port

      • Alternate Method

    • Deleting a Custom Port

To Manage the Firewall

Checking Firewall Status

1. Log into NodeWorx from the browser (https://ip.ad.dr.ess:2443/nodeworx)

2. In NodeWorx, navigate to Server > Firewall

3. Under Firewall Control, the Status bar indicate the current status of the service

   • It is also possible to control the status of the service from this interface:

     • Play starts the service

     • Arrow restarts/refreshes the service

     • Stop stops the service

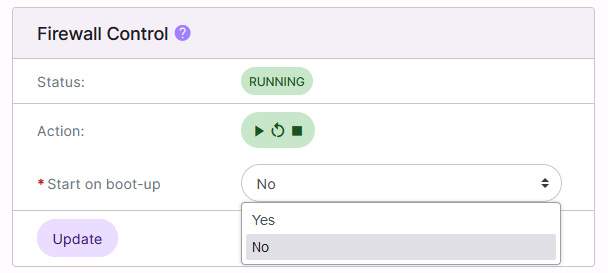

Setting Firewall Start-On-Boot Options

1. Log into NodeWorx from the browser (https://ip.ad.dr.ess:2443/nodeworx)

2. In NodeWorx, navigate to Server > Firewall

3. Under Firewall Control, select either Yes or No from the Start on Boot-up dropdown

4. Click Update

To Manage Trusted and Blocked IPs

It is possible to specify specific IPs to allow or block in the firewall. Unless specified, Trusted IPs will be allowed through the firewall across all ports, while Blocked IPs will be denied access across all ports. IPs not listed in either Trusted IPs or Blocked IPs will be subject to the per-port rules listed under Port Access.

Firewall IP Syntax Overview

Simple Syntax

• The simplest syntax is just a single valid IP address. For example, 192.168.1.10 and 169.254.43.11 are valid entries

• Masked IP addresses may also be used, which allow the ability to cover an entire range of IPs. For example, 10.0.1.0/24 and 192.0.0.0/8 are valid entries

Advanced Syntax

Advanced IP syntax not only provides control over the IP address, but also the protocol (UDP or TCP), flow direction (inbound or outbound), and port. The advanced syntax is: protocol:flow:port:ip

• Protocol: Either UDP or TCP. If the protocol is not provided, TCP is assumed

• Flow: Either in or out. If protocol is provided, then flow is required. Otherwise flow is optional. If flow is not provided, “in” is assumed

• s/d=port: A single port number. Specifying if the port is the source port (s=), where the packet originates from, or the destination port (d=), where the packet will end up is also required

• s/d=ip: A valid IP address. Either the IP address alone, or an IP address and mask may be used. Specifying if the IP address is the source IP (s=), where the packet originates from, or the destination IP (d=), where the packet will end up is also required

Example:

To only allow access over port 22 from the IP address 123.45.67.890:

tcp:in:d=22:s=123.45.67.890

Adding Trusted or Blocked IP Addresses

1. Log into NodeWorx from the browser (https://ip.ad.dr.ess:2443/nodeworx)

2. In NodeWorx, navigate to Server > Firewall

3. Under Global IP Access Control, update the desired fields with one IP address, per line:

   • Trusted IPs: IPs that are trusted in the firewall

     Note

     The IP address for license.interworx.info (207.32.181.150) must always be listed in the Trusted IPs field for proper function of the InterWorx license authentication system.

   • Blocked IPs: IPs that are blocked in the firewall



4. Click Update

Removing Trusted or Blocked IP Addresses

1. Log into NodeWorx from the browser (https://ip.ad.dr.ess:2443/nodeworx)

2. In NodeWorx, navigate to Server > Firewall

3. Under Global IP Access Control, updated the desired fields by deleting the IP:

   • Trusted IPs: IPs that are trusted in the firewall

     Note

     The IP address for license.interworx.info (207.32.181.150) must always be listed in the Trusted IPs field for proper function of the InterWorx license authentication system.

   • Blocked IPs: IPs that are blocked in the firewall

4. Click Update

To Manage Firewall Options

1. Log into NodeWorx from the browser (https://ip.ad.dr.ess:2443/nodeworx)

2. In NodeWorx, navigate to Server > Firewall

3. Under Firewall Information, update the desired fields:

   • Firewall Debug Mode: When debug mode is On, all firewall rules are flushed every 5 minutes to prevent being locked out of the server due to a firewall misconfiguration. It is recommended to set this option to Off once the firewall is set up

   • Default Type of Service: This setting affects network response. There are three options:

     • Minimum delay: Should be selected when low latency (the time it takes for a data to travel from the source host to destination host) is most important

     • Maximum throughput: Should be selected when the volume of data transmitted in any period of time is important, and latency is less important

     • Maximum reliability: Should be selected when it is important that the data will arrive at the destination without retransmission being required

   • TCP Drop Policy: Determines how TCP packets are filtered. There are three options:

     • Reset: Sends a tcp-reset. This is the TCP/IP default

     • Drop: Drops the packet

     • Reject: Rejects the packet

   • UDP Drop Policy: Determines how UDP packets are filtered. There are three options:

     • Reset: Sends a tcp-reset. This is the TCP/IP default

     • Drop: Drops the packet

     • Reject: Rejects the packet

     • Prohibit: Sends an icmp-host-prohibited response.

   • Block Multicasting: Defines if the firewall should block multicast traffic

   • Block Private Networks: When set to On, this option blocks all private IPv4 addresses. If the server resides behind a firewall with NAT or routing scheme that otherwise uses private addressing, this option should be set to Off

   • Outbound Packet Filtering: Outbound (egress) filtering provides full outbound packet filtering. Port specific outbound rules will not apply if this setting is disabled

   • Maximum Sessions: Defines the maximum number of connection tracking entries that can be handled by the firewall

     simultaneously

   • Sysctl TCP: Enables or Disables sysctl hook changes to harden the kernel from certain network-based attacks, by lowering standard time-out values and other time based packet responses

   • Untrusted Interface: All traffic on defined interface will be subject to all firewall rules. This should be the internet exposed interface

   • Trusted Interfaces: All traffic on defined interface(s) will bypass all firewall rules



4. Click Update

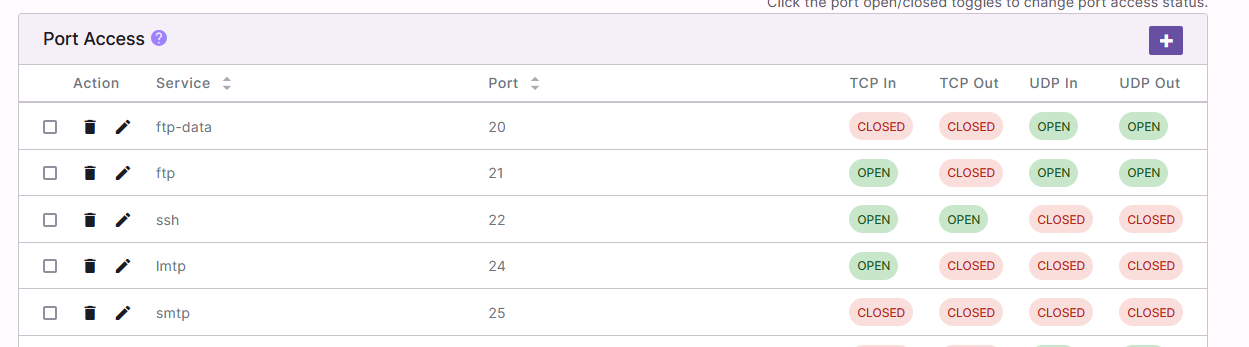

To Manage Custom Port Access Rules

Adding a Custom Port

1. Log into NodeWorx from the browser (https://ip.ad.dr.ess:2443/nodeworx)

2. In NodeWorx, navigate to Server > Firewall

3. Under Port Access, click +. This opens the Add Port menu

4. Update the Port(s) field with the desired port

5. Select Open or Closed for each TCP and UDP dropdown



6. Click Add

Opening or Closing a Port

Note

Note: Port 2443 must be open for the control panel to function correctly.

1. Log into NodeWorx from the browser (https://ip.ad.dr.ess:2443/nodeworx)

2. In NodeWorx, navigate to Server > Firewall

3. Under Port Access, click the Pencil next to the port. This opens the Update Port form

4. Select Open or Closed for each TCP and UDP dropdown



5. Click Save

Alternate Method

1. Log into NodeWorx from the browser (https://ip.ad.dr.ess:2443/nodeworx)

2. In NodeWorx, navigate to Server > Firewall

3. Under Port Access, identify the port to edit

4. Click either Open or Closed under the corresponding TCP or UDP setting. If the setting is currently Closed, it will then be swiched to Open, and vice versa



Deleting a Custom Port

Note

The NodeWorx interface will always display a default list of commonly used ports. Deleting a commonly used port will not remove it from the table, but instead show the port as closed across all four options.

1. Log into NodeWorx from the browser (https://ip.ad.dr.ess:2443/nodeworx)

2. In NodeWorx, navigate to Server > Firewall

3. Under Port Access, click the Trashcan next to the port to be deleted. This opens the Confirm Deletion form



4. Click Delete
