Upgrading from InterWorx 7.x to InterWorx 8.x

InterWorx 8 includes the following new features:

• Refreshed GUI

• New UI sidebar that includes detailed information and documentation links for forms and tasks

• Support for AlmaLinux 9, Rocky Linux 9, and RHEL 9

• Improved Migration tool, which includes incremental imports and re-syncs, DNS updates, and other tools to assist with migrations

• Ability to change the docroot of primary or secondary domains via the GUI

• Ability to manage a Subdomain’s docroot and PHP version from the GUI

• Advanced domain configuration options via the GUI

Other Notable Changes:

• Horde is no longer a webmail option, as it does not support the new internal PHP version of PHP 8.2

• Let’s Encrypt and AutoSSL are enabled automatically

• Multiple PHP is now enabled automatically

• Webalizer was removed as a statistics option, as it does not support EL9

• Old file manager was removed, as it is not supported on EL8 or EL9

Contents

• Upgrading from InterWorx 7.x to InterWorx 8.x

  • Important Considerations

  • How to Upgrade

  • Troubleshooting

Important Considerations

Warning

Please make note of the following important considerations before proceeding with the upgrade from InterWorx 7 to InterWorx 8, as the upgrade cannot be reverted

• The InterWorx 7 to InterWorx 8 upgrade tool is not supported on InterWorx Clusters

• The InterWorx 7 to InterWorx 8 upgrade tool is not supported on servers using LiteSpeed

• The InterWorx 7 to InterWorx 8 upgrade tool is not supported on EL7 servers

• During the upgrade, both NodeWorx and SiteWorx will be in maintenance mode. While user domains and email services will still be active, neither the NodeWorx, nor the SiteWorx interface will be accessible

• All core services (Apache, MySQL, DNS, etc) will be restarted during the update

• Detailed upgrade logs are located at ~iworx/var/log/upgrade.log

How to Upgrade

1. Log into NodeWorx from the browser (https://ip.ad.dr.ess:2443/nodeworx)

2. Navigate to Server > Software Updates

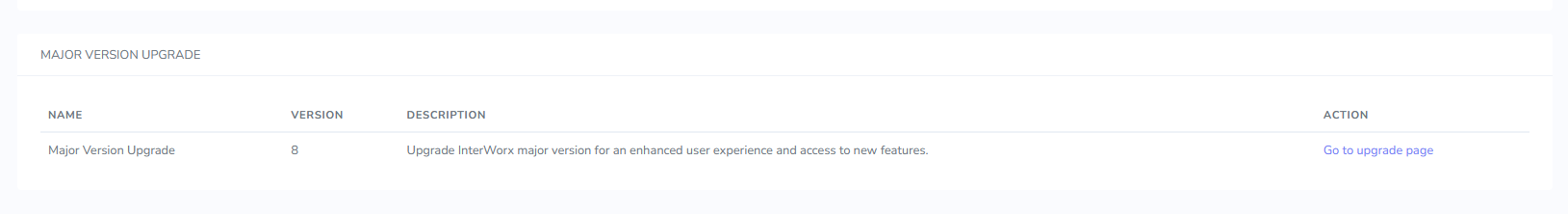

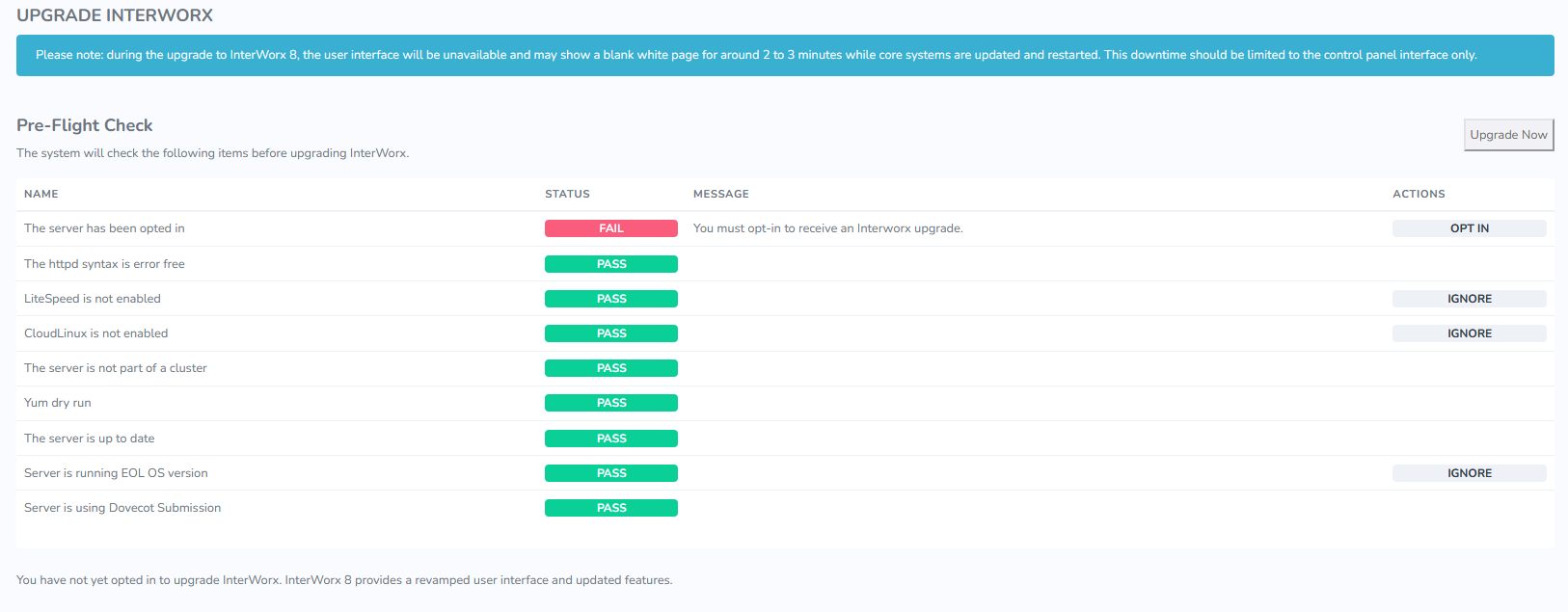

3. At the bottom of the page, under Major Version Upgrade, click Go to upgrade page. This opens the Pre-Flight Check page

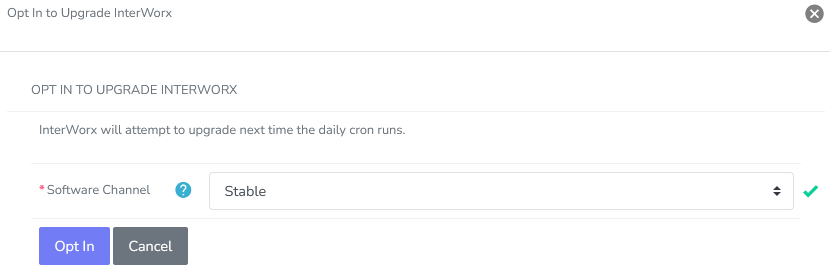

4. Click Opt In. This opens the Opt In to Upgrade InterWorx form

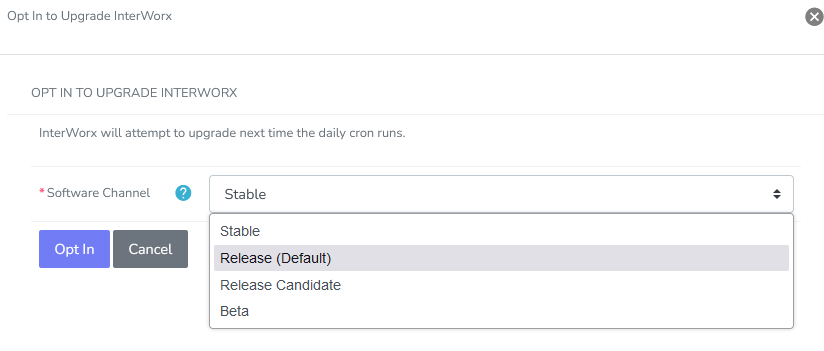

5. Select the Software Channel from the Software Channel dropdown. This determines which version of InterWorx 8 the server will update to



6. Click Opt In

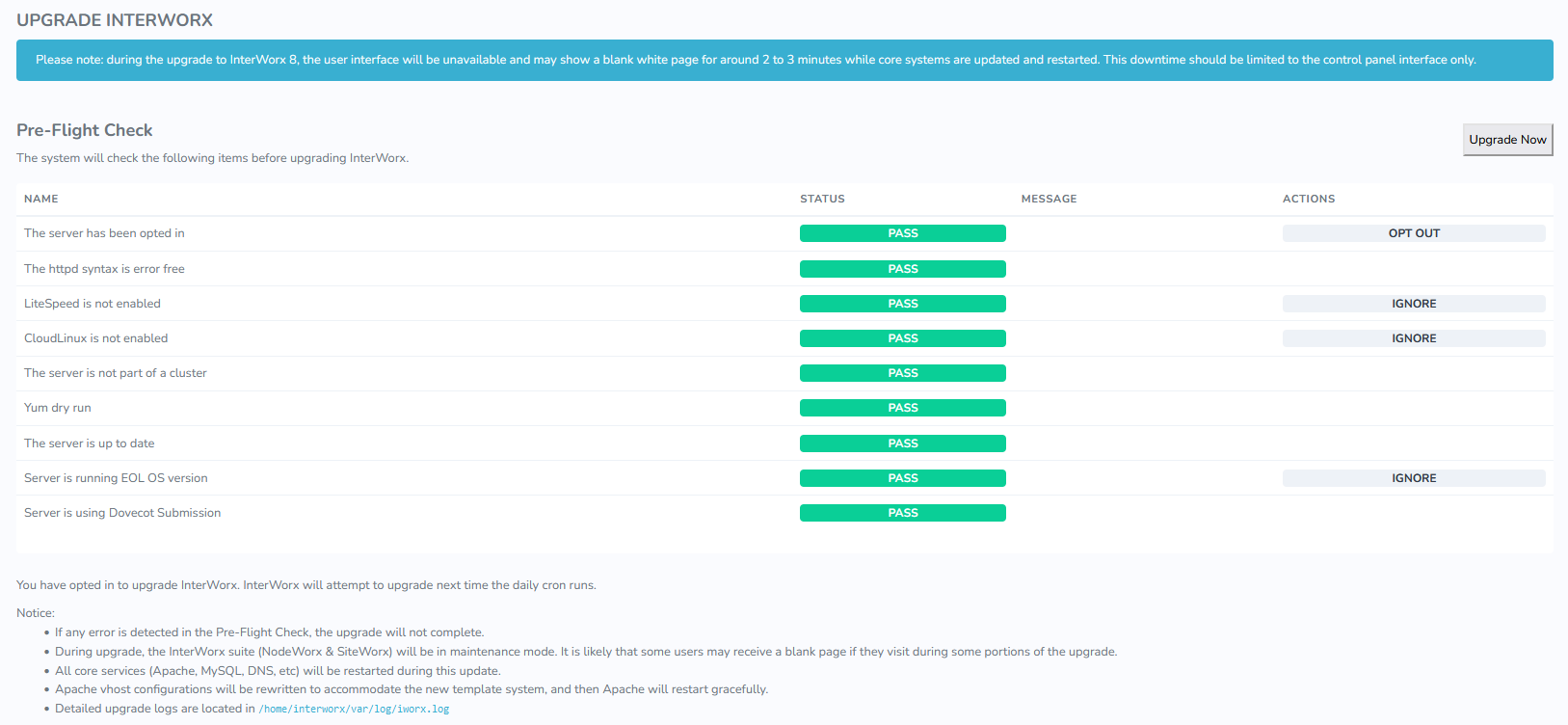

7. Make sure that there are no Failures listed in the Pre-Flight Check. If any error is detected in the Pre-Flight Check, the upgrade will not complete

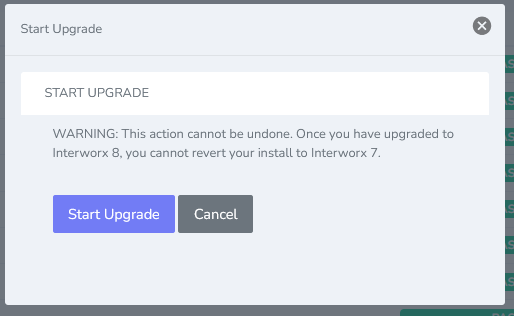

8. If there are no failures listed, click Upgrade Now. This opens the Start Upgrade confirmation form

   • If the Upgrade Now button is grayed out, resolve or ignore the identified problems in the Pre-Flight Check table

   Warning

   Ignoring any identified problems on the Pre-Flight Check may cause serious issues while using InterWorx 8, and is not recommended.

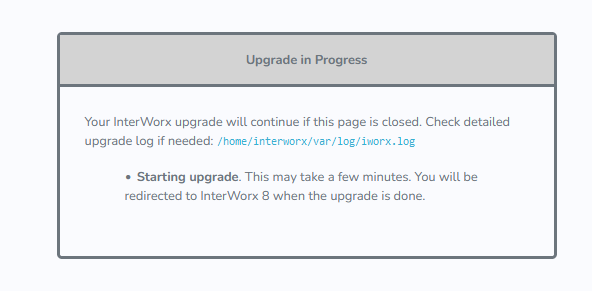

9. Click Start Upgrade. This opens the Upgrade in Progress page



   The upgrade from InterWorx 7 to InterWorx 8 will take several minutes. Progress may be monitored by referencing the logging at ~iworx/var/log/iworx.log.

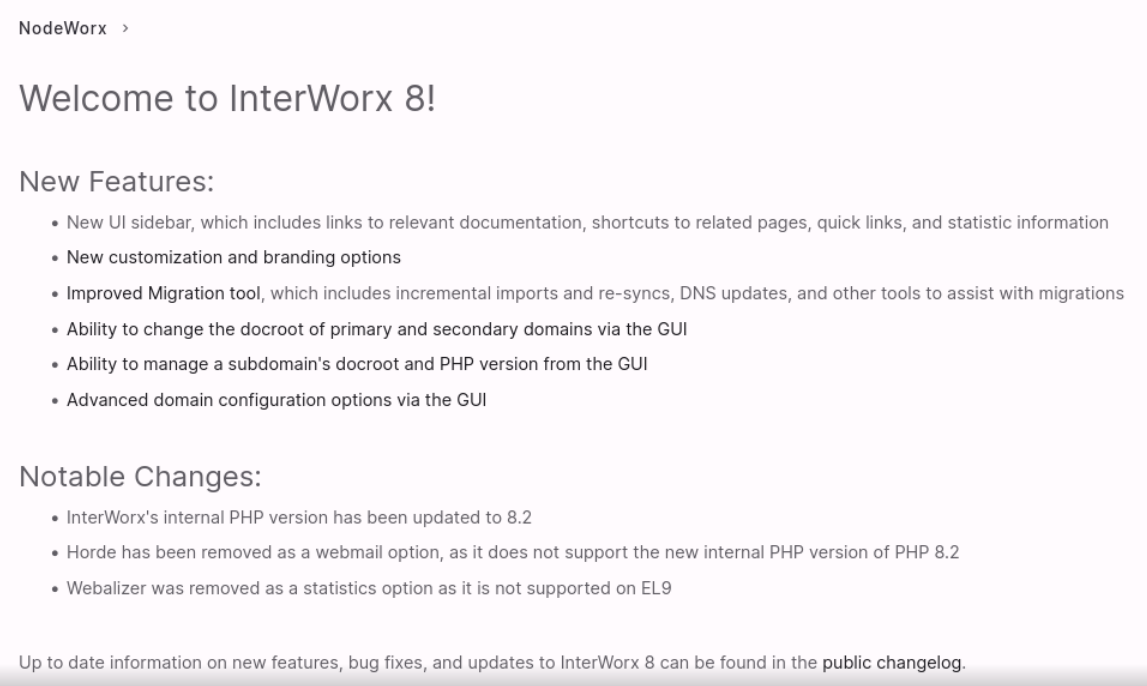

   When the upgrade is complete, the page will redirect to the InterWorx 8 Welcome page.



Troubleshooting

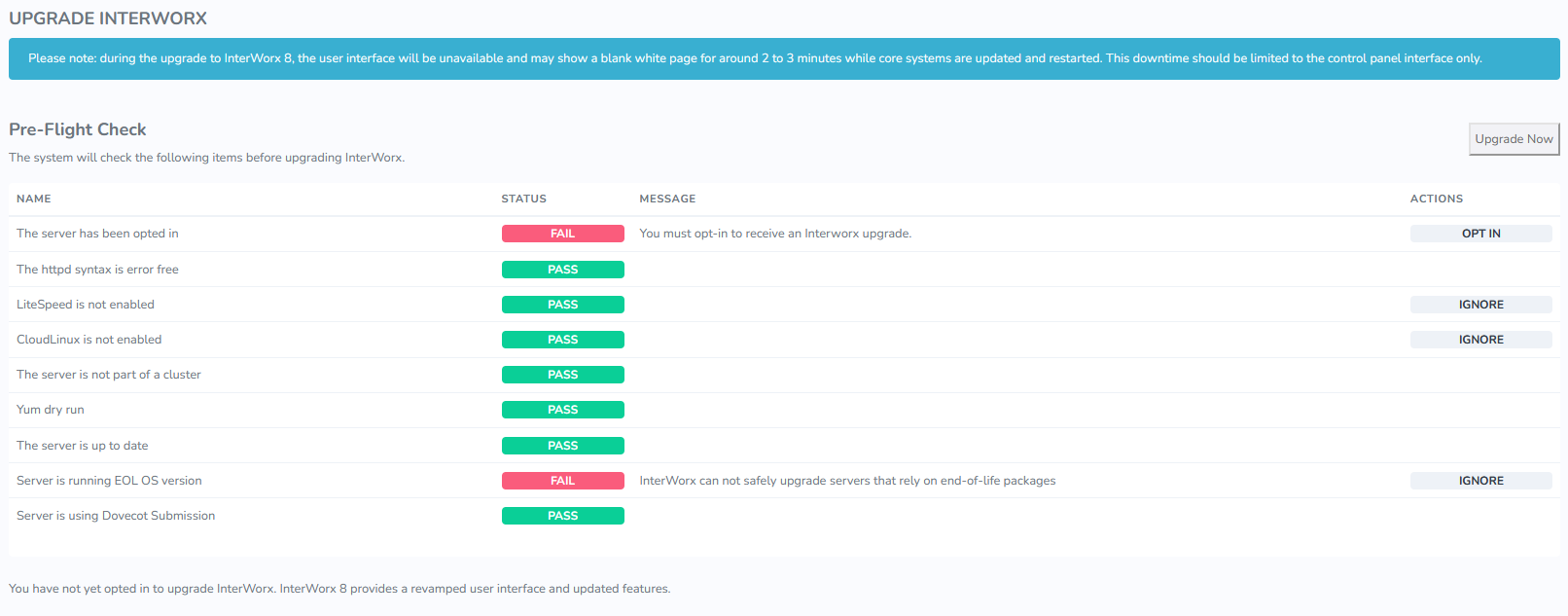

In order to best facilitate the upgrade to InterWorx 8, the items listed on the pre-flight checklist are addressed before the update to InterWorx 8 occurs. If any of the items on this checklist fail, the update will not happen.

Ignoring any identified problems on the Pre-Flight Check may cause serious issues while using InterWorx 8.

These items are:

• The httpd syntax is error free: If there are any syntax errors in Apache conf or vhost files, this will fail

• LiteSpeed is not enabled: This update cannot occur on Litespeed servers. Litespeed will either need to be disabled, or accounts will need to be migrated to a new server with InterWorx 8 installed

• CloudLinux is not enabled: This update cannot occur on servers running CloudLinux. Those accounts must be imported to a new server with InterWorx 8 installed

• The server is not part of a cluster: This update cannot occur on clustered servers. Clustering either has to be disabled/removed or accounts will need to be migrated to new servers with InterWorx 8 installed

• Yum dry run: This checks to make sure that yum is up and running

• The server is up to date: This makes sure that the server is up to date

• Server is running EOL OS version: This checks to make sure that the server is on a supported OS. The update to InterWorx 8 will not work on EL7 servers. If this fails, accounts must be migrated to a new server with InterWorx 8 installed. Supported OSes can be found here

• Server is using Dovecot Submission: Servers using courier for port 587 cannot be updated to InterWorx 8. The Dovecot MSA must be in use

  There are two ways to check if courier is in use:

  • Via the GUI: If, under System Services > Mail Server > MDA Settings or MSA Settings, there is a button that says Convert to Dovecot, that service is not using Dovecot.

    Note

    If the MDA page has this button, the MSA link will not be shown. The existence of the MSA requires Dovecot handle the MDA services.

  • Via the CLI: Run the following commands:

    cat ~iworx/etc/env/mda
    cat ~iworx/etc/env/msa


    Both of those files should say “dovecot”. If either of them say “legacy”, Dovecot is not handling that service. Example of the correct settings:

    [root@server env]# cat ~iworx/etc/env/mda
    dovecot
    [root@server env]# cat ~iworx/etc/env/msa
    dovecot
    [root@server env]


    To convert to Dovecot:

    • Via the GUI: Click the Convert to Dovecot button on each page that it appears

    • Via the CLI:

      • Run the following to convert the MDA, if needed:

        nodeworx -u -n -c MailMda -a convertToDovecot


      • Run the following to convert the MSA:

        nodeworx -u -n -c MailMsa -a convertToSubmission
